Wind Master Evaporative Cooling Pads is the perfect and most practical strategy for cooling. It uses the natural cooling effect of evaporation to combat seasonal dips in production caused by heat stress. Effective cellular water media can decrease temperature up to 20 degress depending on the temperature and humidity conditions of the area.

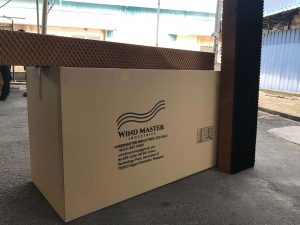

Wind Master is one of the leading manufacturer of evaporative cooling pads in Malaysia. We can help you by providing correct sizing and placement, and provide a realistic expectation of the effectiveness of evaporative cooling in your area.
Our evaporative cooling pads are 100-150mm thick, 300-900mm wide with 1000-2200mm height. For the evaporative cooling framework guarantee that the evaporative pads are situated nearby each other to shape a constant cushion of the necessary tallness and length. The evaporative pads are made of exceptionally defined cellulose paper, impregnated with insoluble anit-decay salts, solidifying saturants and wetting operators. They don’t require wire containers or other supporting materials. The cushions are held set up by segment portions of the framework.
- Completely self-contained
- Sump included
- Energy Efficient cooling
- Custom designs available
Distributor Pad
The purpose of distributor pad is distributing water across the whole pad. It will enhance the evaporative process.

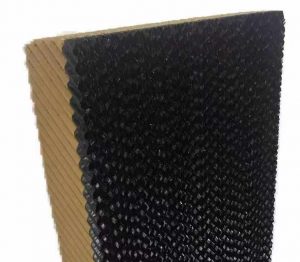

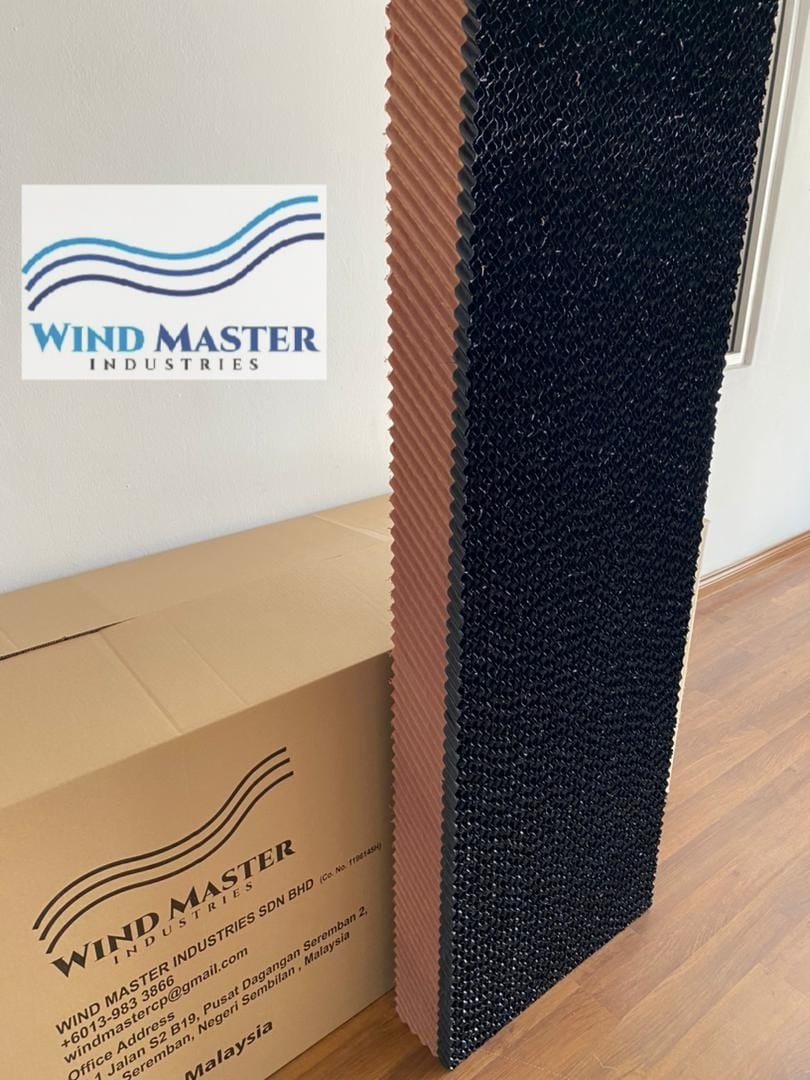

Black Coating
A qualitative gamut of 7mm Black coated on single side. With advantage of Easy to clean, Greater protection, Longer life time.

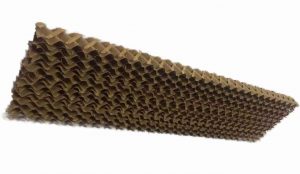

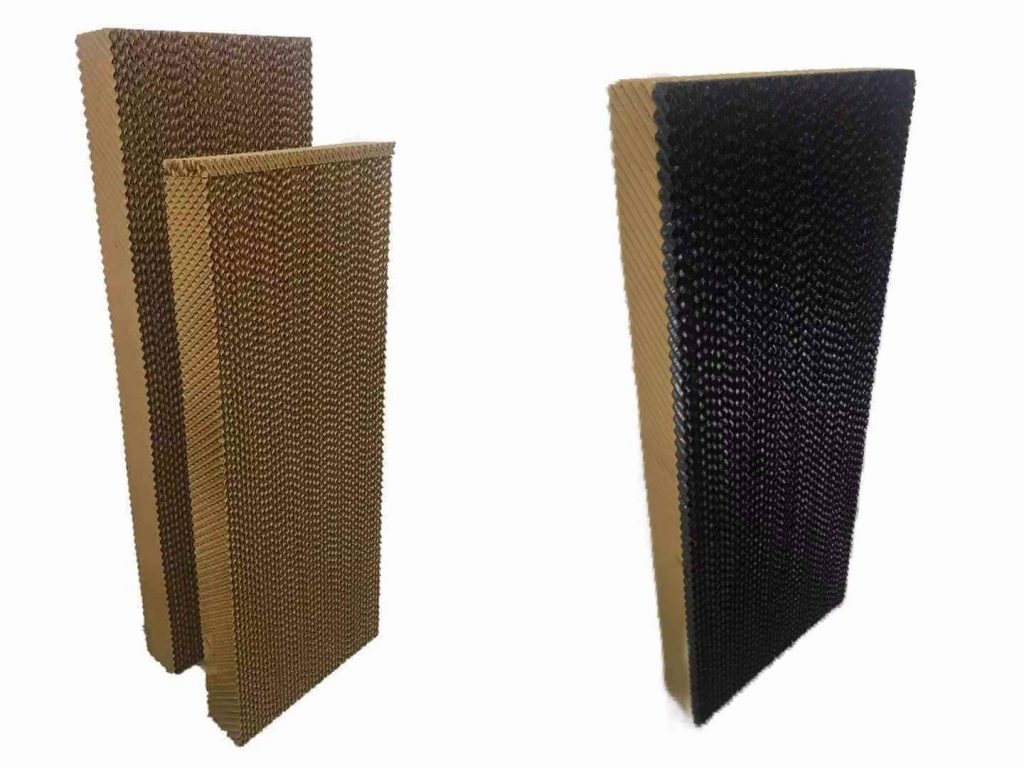

Evaporative Cooling Pad Sizes
WM7060
WM7060 Evaporative cooling pads with a different flute angle (45° / 15°) In a high evaporation efficiency while still operating at the lowest pressure drop.
WM7090
WM7090 Evaporative cooling pads with a different flute angle (45° / 45°) In a high evaporation efficiency while still operating at the lowest pressure drop.
W:Width
D:Depth
H: Height
α :Angle of flute
β :Angle of flute

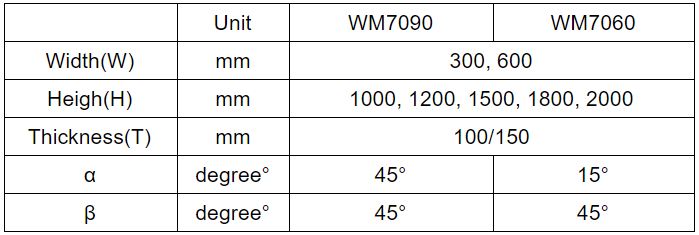

| Unit | WM7090 | WM7060 | |
| Width (W) | mm | 300/600/900 | |
| Height (H) | mm | 1000/1500/1800/2000 | |
| Thickness (T) | mm | 100/150 | |
| α | degree° | 45° | 15° |
| β | degree° | 45° | 45° |

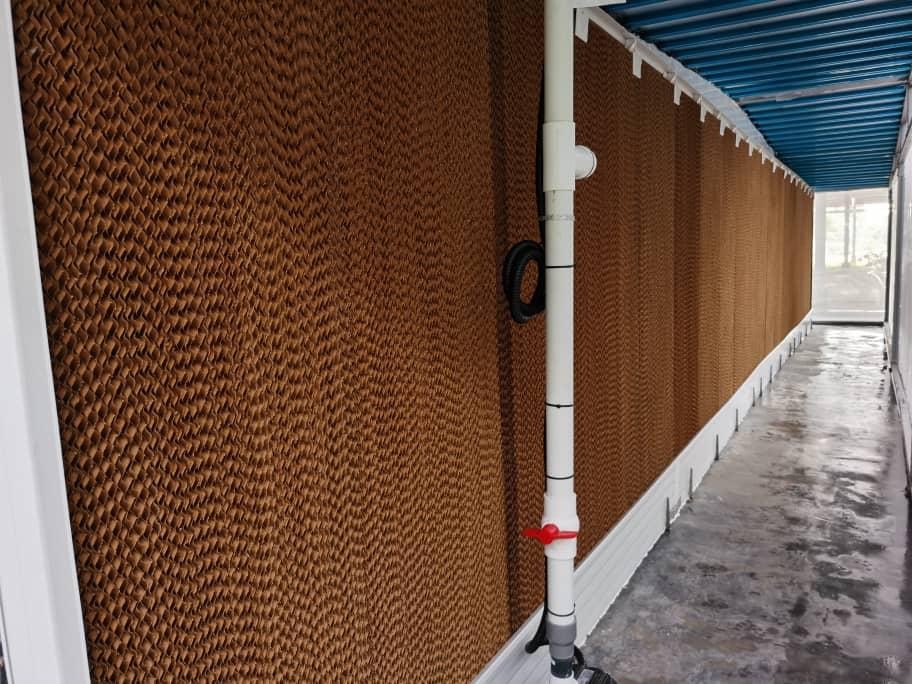

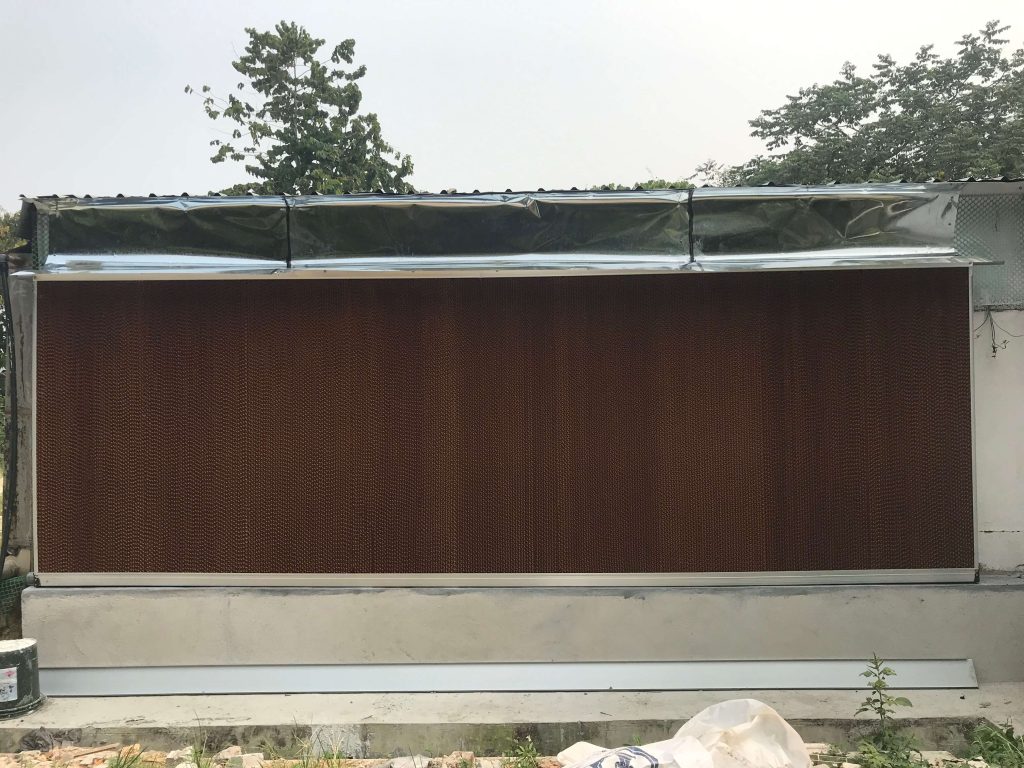

Evaporative Cooling Pad with Gutter Set
This product is made by aluminium/pvc frame with customized design of size required. Anti-corrisive, faster water distribution, longer serving life and easy installation/maintenance.

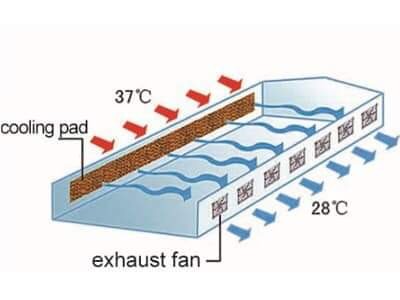

How Evaporative Cooling Pad Works
Corrugated cellulose media resin treated with rigidfying, anti-rot and best absorption water. High quality of raw material to make sure the air flows horizontally while the water is flowing through the pad. Uses for:
